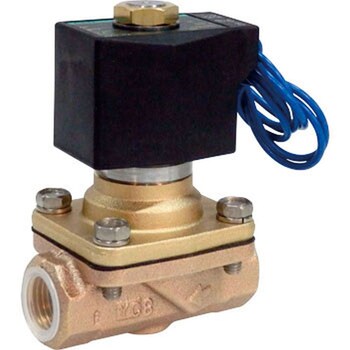

Model Number : ADK11-15A-02C-AC100V

Unit : 1pc

Working Fluid : Air, inert gas, low vacuum (1.33 x 10 3 Pa), water, kerosene, (50 mm 2 or less)

Valve Structure : Pilot kick type poppet structure, diaphragm drive

Maximum operating pressure difference (MPa) : (Air, water, kerosene) 1.0, (oil (50 mm 2/s)/0.6)

Heat resistant class : B

Rated Voltage (V) : AC100

Coil Housing : Grommet lead wire

Material (Body) : bronze

Valve seat leak (cm³/min) : 0 (air pressure 0.02 to 1.0 MPa)

Orifice (mm) : 16

Mounting attitude : freely

Effective cross-sectional area (mm²) : 88

Operation classification : Normally closed type

Drive System : Diaphragm

Fluid Temperature (°C) : -10 to 60 (no freezing)

Ambient Temperature (°C) : -10 to 60

Material (Seal) : Nitrile rubber

Connection aperture (Rc) : 1/2

Atmosphere : No corrosive gas or explosive gas

Maximum Working Pressure (MPa) : 2

Withstand pressure (MPa) : 4 (at water pressure)

Berat (Kg) : 0.8

*NOTE

-Barang original

-Untuk ketersediaan barang silahkan hubungi admin terlebih dahulu
