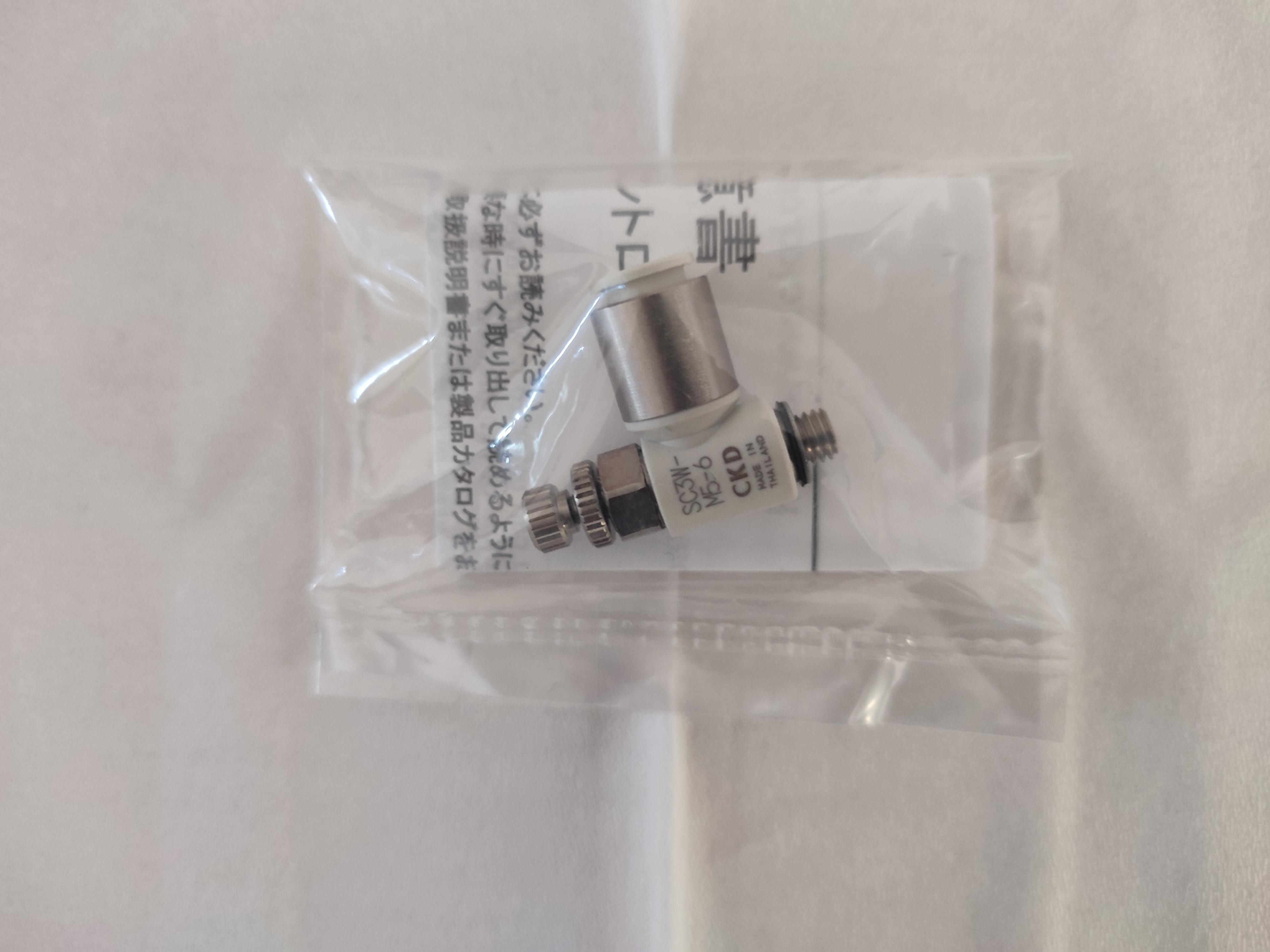

Model Number : SC3W-M5-6

Unit : 1pc

Control Direction : Meter out

Applicable Tube Outer Diameter (phi mm) : 6

Hexagon Opposite Side (mm) : 8

Ambient Temperature (°C) : 0 to 60 (but not freezing)

Fluid Temperature (°C) : 5 to 60 (but not frozen)

Minimum working pressure (MPa) : 0.1

Screw Size : M5

Mass (g) : 15

Flow Rate (l/min (ANR)) : Free flow: 87.Control flow: 80

Needle rotational speed : More than 10

Effective cross-sectional area (mm²) : Natural flow: 1.3. Control flow: 1.2

Maximum Working Pressure (MPa) : 1.0

Working Fluid : Compressed air

Guaranteed pressure resistance (MPa) : 1.5

Berat (Kg) : 2.6

*NOTE

-Barang original

-Untuk ketersediaan barang silahkan hubungi admin terlebih dahulu
