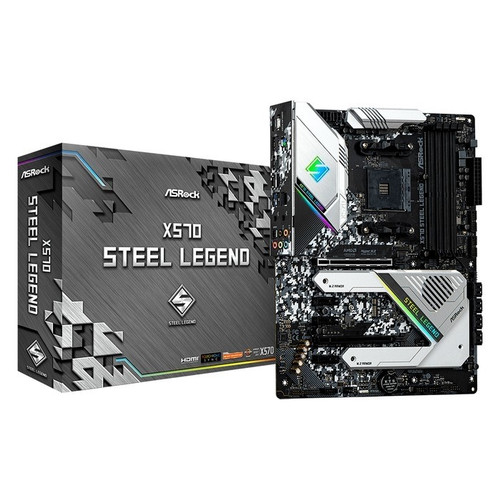

Product Name : ASRock X570 Steel Legend

Brand : ASRock

Model : X570 Steel Legend

CPU Type : Supports AMD AM4 Socket Ryzen 2000 and 3000 Series

Chipset : X570

Memory Standard : 4 x DDR4 DIMM, Ryzen Gen3 3466(OC) Up to 4666+(OC), Ryzen Gen2 3200(OC) Up to 3600+(OC), Ryzen 3466+(OC).

Maximum Memory Supported : 128GB Dual Channel

Expansion Slots : 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi

SATA Port : 8 x SATA3 6.0 Gb/s

M.2 : 2x M.2 supports M Key

Onboard Video Chipset : Integrated AMD Radeon Graphics (APU Only)

Multi-GPU support : Supports AMD Quad CrossFireX and CrossFireX

Audio Chipset : Realtek ALC1220

LAN Chipset : GigaLAN Intel I211AT

Rear Panel Ports : 2 x Antenna (on I/O Panel Shield), 1 x PS/2 M/K, 1 x HDMI, 1x DP 1.2, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Form Factor : ATX (30.5 cm x 24.4 cm)
