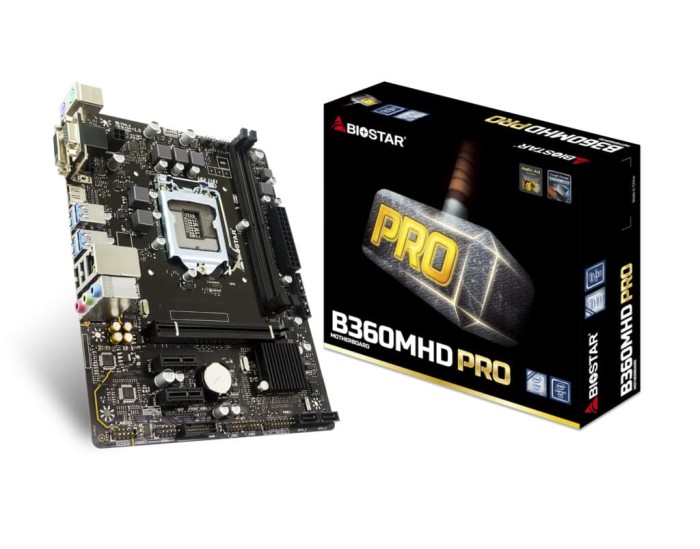

Chipset: Intel B360
CPU SUPPORT: 8th Gen Intel® LGA 1151 Processor
MEMORY: Support Dual Channel DDR4 1866/2133/2400/2666 MHz; 2 x DDR4 DIMM Memory Slot; Max. Supports up to 32GB Memory
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot, 2 x PCI-E 2.0 x1 Slot
STORAGE: 4 x SATA3 Connector
USB: 4 x USB 3.1 Gen1 Port, 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Port, 2 x USB 2.0 Header
LAN: Realtek RTL8111H - 10/100/1000 Controller
INTEGRATED VIDEO: By CPU model
CODEC: Realtek ALC887 8-Channel HD Audio
REAR I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 4 x USB 3.1 Gen1 Port, 2 x USB 2.0 Port, 1 x HDMI Connector, resoltuion up to 4096*2160 @ 24Hz, compliant with HDMI 1.4, resoltuion up to 4096*2160 @ 24Hz, compliant with HDMI 1.4, 1 x DVI-D Connector, resolution up to 1920*1200@60Hz, 1 x VGA Port, resolution up to 1920*1600@60Hz, 1 x LAN port, 3 x Audio Jacks
INTERNAL I/O: 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Header, 4 x SATA3 6Gb/s Connector, 1 x Front Audio Header, 1 x Front Panel Header, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x Serial Port Header
DIMENSION: Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L ) ( W x L )
ACCESSORIES: 1 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide
Supports 8th Generation Intel® Core™ Processor
Intel B360 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
Support USB 3.1 Gen1
Support HDMI display port
Support GbE LAN
