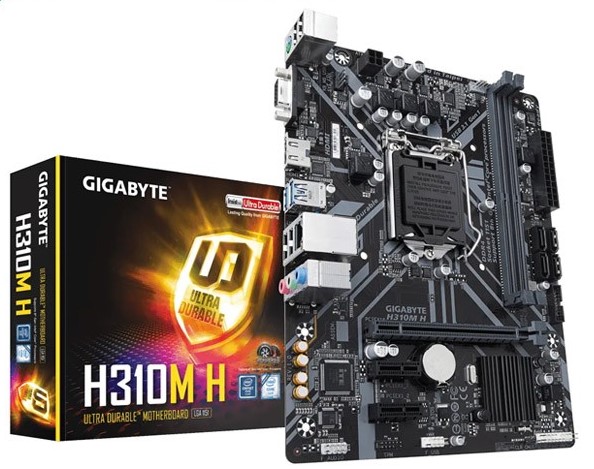

Model H310M-H 1.0

CPU Type Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

Chipset Intel® H310 Express

Memory Standard 2 x DDR4 DIMM Slots

Max. Memory Supported Up to 32 GB

Expansion Slots 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots

SATA Port 4 x SATA 6Gb/s

M.2 -

Onboard Video Chipset 1 x D-Sub port, 1 x HDMI port

Multi-GPU support -

Audio Chipset Realtek® ALC887 codec

LAN Chipset Realtek® GbE LAN chip (10/100/1000 Mbit)

Rear Panel Ports 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

Form Factor Micro ATX
