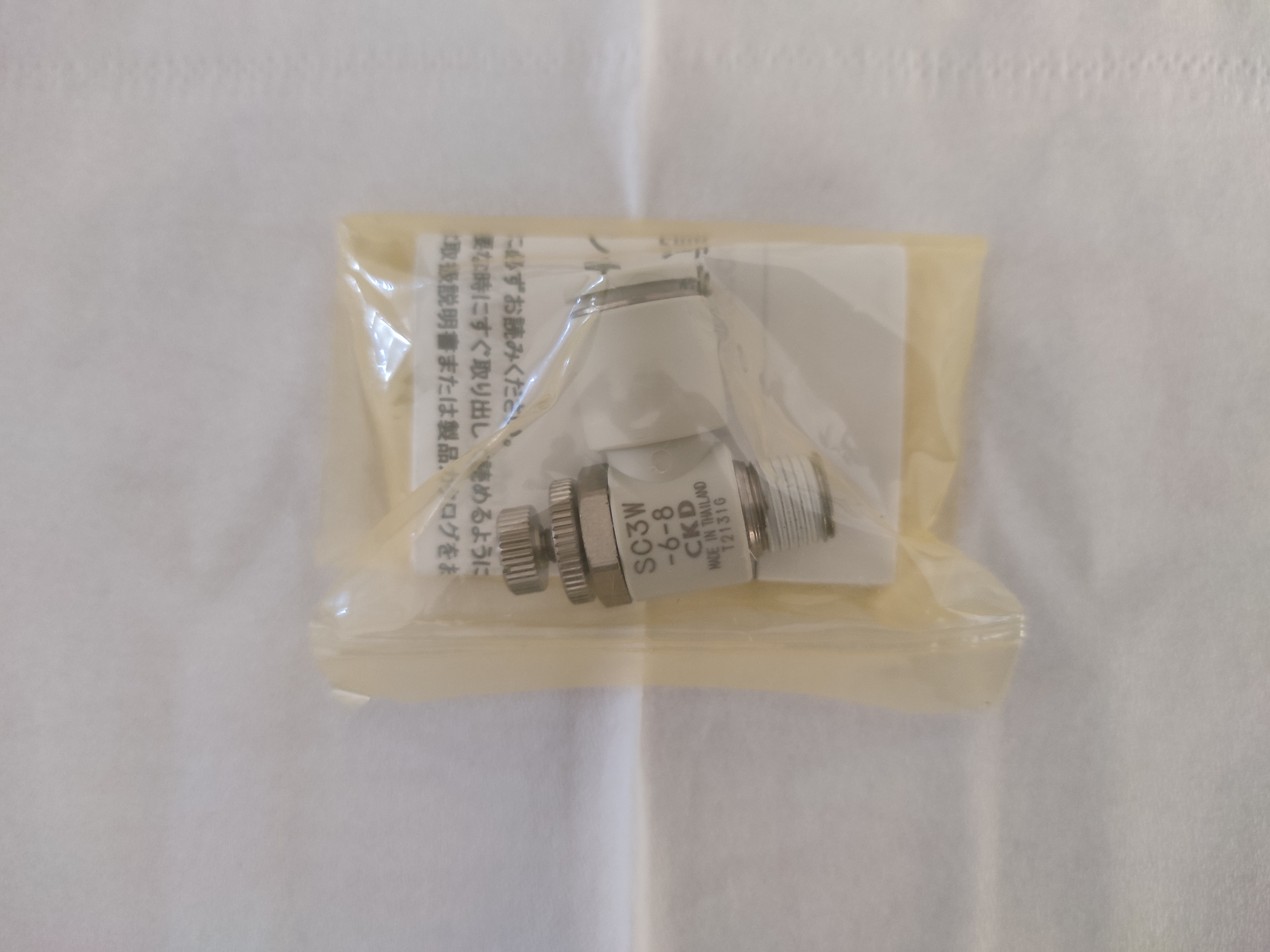

Model Number : SC3W-6-8

Unit : 1pc

Screw Size : R1/8

Working Fluid : Compressed air

Fluid Temperature (°C) : 5 to 60 (but not frozen)

Mass (g) : 27

Guaranteed pressure resistance (MPa) : 1.5

Hexagon Opposite Side (mm) : 13

Effective cross-sectional area (mm²) : Natural flow: 4.0. Control flow: 3.6

Maximum Working Pressure (MPa) : 1.0

Applicable Tube Outer Diameter (phi mm) : 8

Minimum working pressure (MPa) : 0.1

Ambient Temperature (°C) : 0 to 60 (but not freezing)

Needle rotational speed : More than 10

Control Direction : Meter out

Flow Rate (l/min (ANR)) : Free stream: 270. Control flow: 240

Berat (Kg) : 2.6

*NOTE

-Barang original

-Untuk ketersediaan barang silahkan hubungi admin terlebih dahulu
