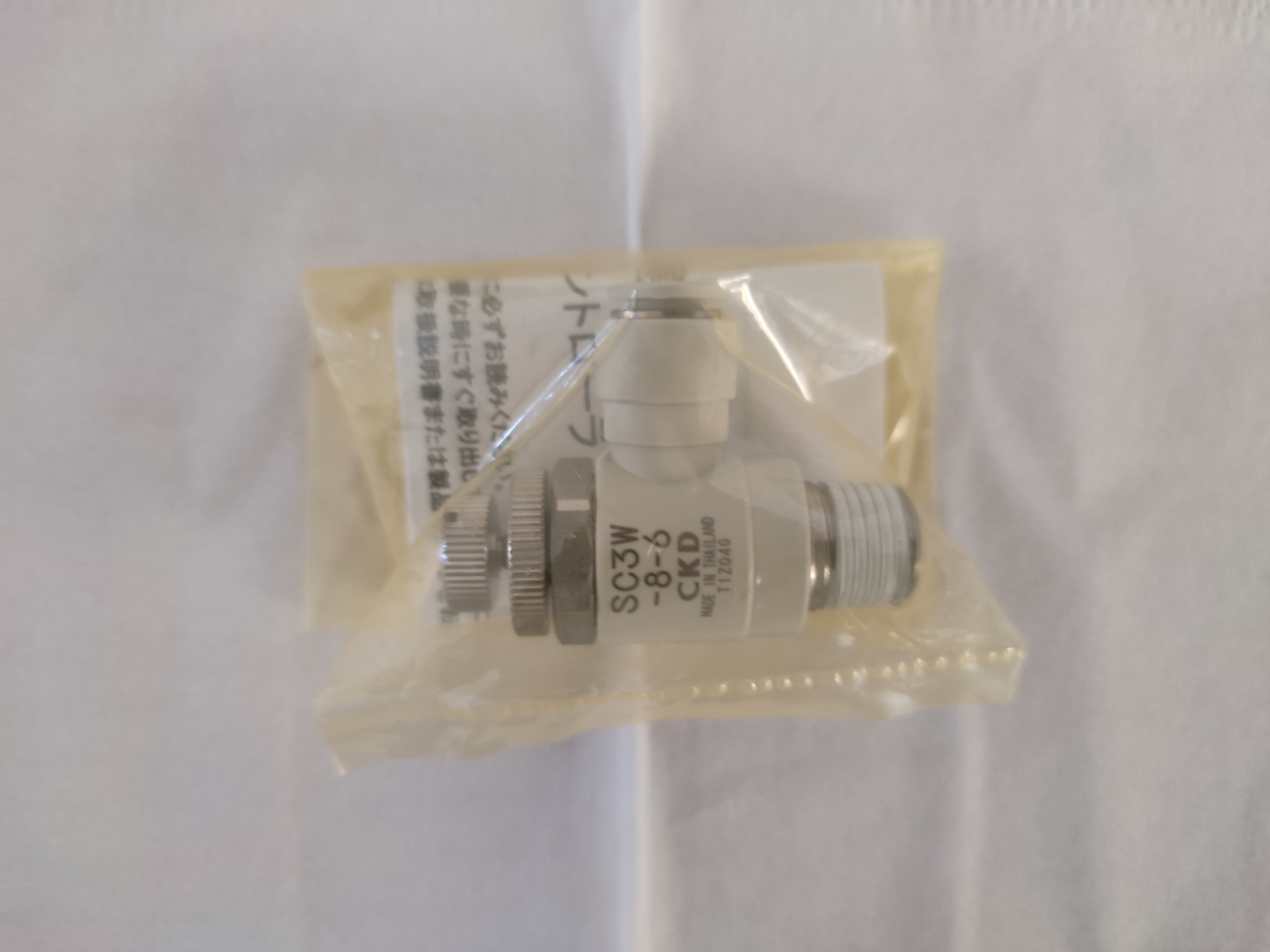

Model Number : SC3W-8-6

Unit : 1pc

Guaranteed pressure resistance (MPa) : 1.5

Needle rotational speed : 13 or more

Screw Size : R1/4

Ambient Temperature (°C) : 0 to 60 (but not freezing)

Minimum working pressure (MPa) : 0.1

Hexagon Opposite Side (mm) : 17

Fluid Temperature (°C) : 5 to 60 (but not frozen)

Applicable Tube Outer Diameter (phi mm) : 6

Control Direction : Meter out

Mass (g) : 50

Flow Rate (l/min (ANR)) : Free stream: 470. Control flow: 430

Working Fluid : Compressed air

Maximum Working Pressure (MPa) : 1.0

Effective cross-sectional area (mm²) : Natural flow: seven. Control flow: 6.5

Berat (Kg) : 2.6
