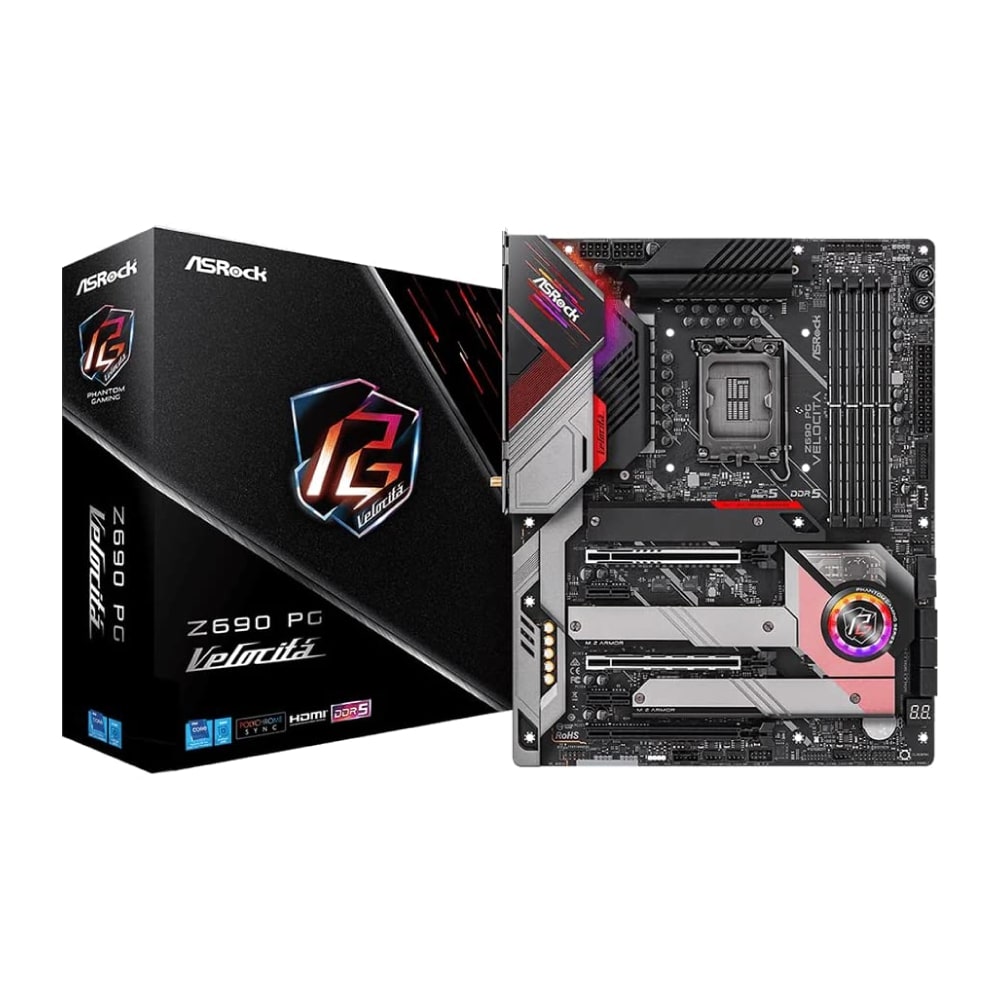

Z690 PG Velocita

    Supports 12th Gen Intel® Core™ Processors (LGA1700)

    17 Phase SPS Dr.MOS Power Design

    Supports DDR5 6400MHz (OC)

    1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16

    2 PCIe 3.0 x1

    Graphics Output Options: HDMI, DisplayPort

    Realtek ALC1220 7.1 CH HD Audio Codec

    Nahimic Audio

    6 SATA3

    1 Blazing M.2 (PCIe Gen5 x4)

    2 Hyper M.2 (PCIe Gen4 x4)

    1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

    1 USB 3.2 Gen2x2 Front Type-C

    2 USB 3.2 Gen2 (Rear Type A+C)

    10 USB 3.2 Gen1 (6 Rear, 4 Front)

    Killer E3100 2.5G LAN, Intel® Gigabit LAN

    Killer AX1675 802.11ax (WiFi 6E) + Bluetooth

    Lightning Gaming Ports

    ASRock Graphics Card Holder

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 8 Layer PCB

- 2oz Copper PCB

Connector

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x VRM Fan Connector (4-pin)******

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

- 1 x Clear CMOS Button

- 1 x Dr. Debug with LED

- 1 x Power Button with LED

- 1 x Reset Button with LED
