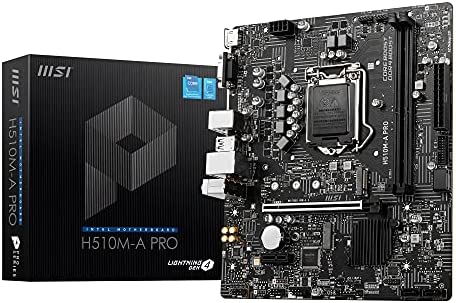

H510M-A PRO

    Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket

    Supports DDR4 Memory, up to 3200(Max) MHz

    Core Boost: With premium layout and digital power design to support more cores and provide better performance.

    DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

    Lightning Fast Experience: PCIe 4.0

    Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

    Audio Boost: Reward your ears with studio grade sound quality

    Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Chipset

Intel® H510 Chipset

Memory

    2x DDR4 memory slots, support up to 64GB1

    Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

    Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

    Supports Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot

    1x PCIe x16 slot (From CPU)

        Support up to PCIe 4.0 for 11th Gen Intel® CPU

        Support up to PCIe 3.0 for 10th Gen Intel® CPU

    1x PCIe 3.0 x1 slot (From PCH)

    1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

Storage

    4x SATA 6Gb/s ports (From H510 Chipset)

    1x M.2 slot (Key M)

        M2_1 slot (From H510 Chipset)

            Supports up to PCIe 3.0 x4

            Supports SATA 6Gb/s

            Supports 2242/ 2260/ 2280 storage devices

    SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
