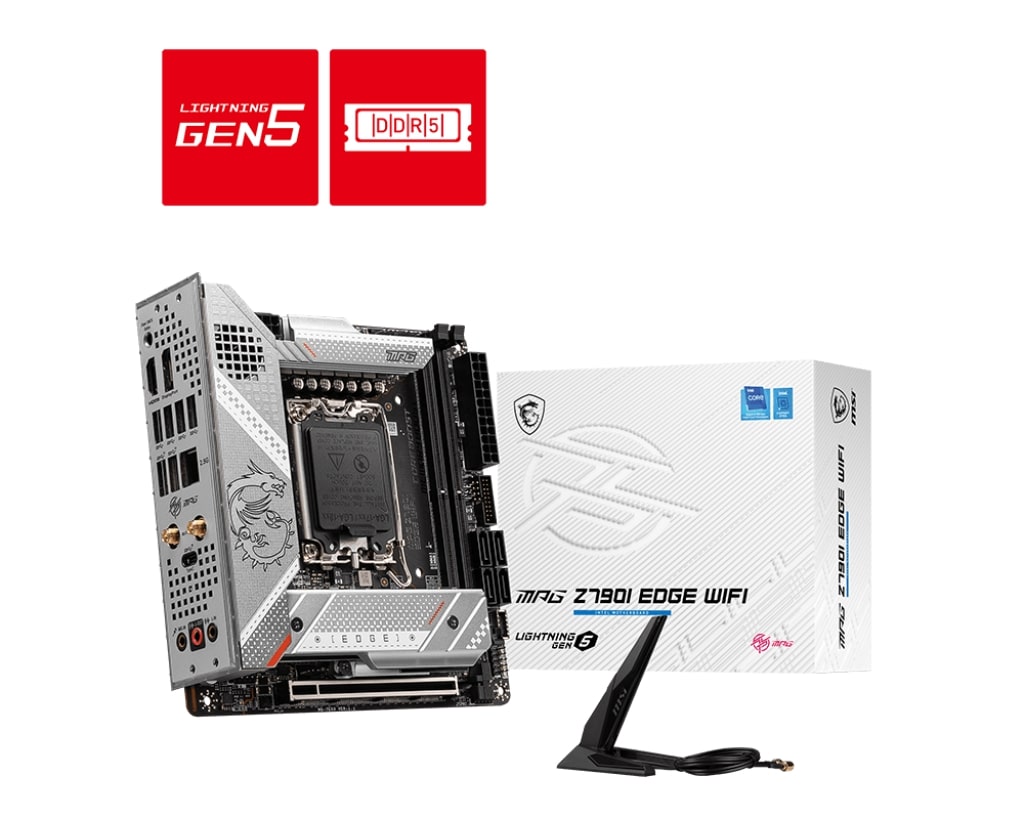

Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket

Supports DDR5 Memory, up to 8000+(OC) MHz

Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost

Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 12-layer PCB made by server grade level material

Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Chipset INTEL Z790

CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

Memory 2x DDR5, Maximum Memory Capacity 64GB

Memory Support 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8000+ MHz

• 1DPC 2R Max speed up to 7200+ MHz

Supports Intel® XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Storage 3x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

4x SATA 6G port

PCB Dimension Mini-ITX

170mmx170mm
